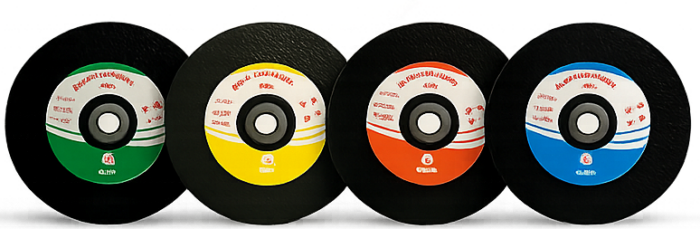

DEPRESSED CENTER WHEELS
- Designed to provide high CUt rates and long life on all types of ferrous metals, stainless steels, alloy steels and cast iron.
- Fiber-Glass reinforced wheels.
- Used on portable Angle Grinders.
- Tobe used at an angle of 300 to 45° to the work piece.
Applicable Areas
-
Steel, iron welding.
-
Foundries
-
Ship Building
-
Fettling Shops
SILVER
- CCQllent free cutting action
- High Safety
DIAMOND
- Good life.
- Very High material
removal rate - High Safety.
GOLD
- High performance grinding.
- Special grain with bond Combination.
- Optimum balance of cut rate & life.
- High Safety.
PLATINUM
-
It gives moderate cut-rate while it lasts longer.
-
Long wheel life
- High machine life
- High Safety.
Sizes & Specifications
| Size in Inch | Diameter in mm | Thickness | Bore in mm | Speed in RPM |
|---|---|---|---|---|
| 4" | 100 | 4/6 | 15.88 | 15200 |
| 5" | 125 | 5/6/7 | 22.23 | 12200 |
| 7" | 180 | 5/6/7 | 22.23 | 8500 |
| 9" | 230 | 6/7 | 22.23 | 6700 |
